Designed
General Argon Arc Application
Capacity
200 Amps Dc Or 125 Amps Ac.
Interchange
Model WCD/400 Except The Torch Head And Hose Assembly.
Hold
Upto 3.0 Mm Dia Tungsten Rod.

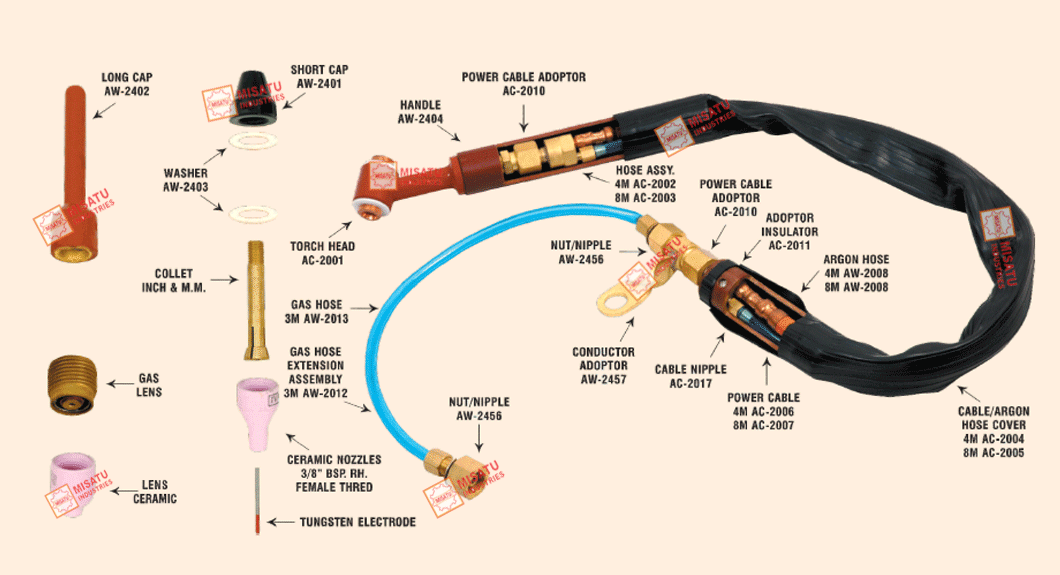

| Torch Package | Standard Accessories Kit Set Of 14 Pcs - Ref. : Acd/200/Sak | |||||
|---|---|---|---|---|---|---|
| Ceramic Cup | Lens Ceramic | Collet | ||||
| Torch Head | ACD-2001 | Long Cap | AW-2402 | 2411-1PC. | 2463-1PC | AW-2432-1PC. |
| Washer (2 Pcs.) | AW-2403 | Collet | AW-2433 | 2412-1PC. | 2464-1PC. | AW-2433-1PC. |
| Handle | AW-2404 | Ceramic | 2411 | 2413-1PC. | AW-2434-1PC. | |
| Conductor Adoptor | AW-2457 | 2414-1PC. | AW-2435-1PC. | |||
| Water Drain Hose Assy. | AC-2012 | |||||
| Either | Plus Cable Assy. | Or | Gas Lens | Caps | ||
| 4 METER - AC-2002 | 8 METER - AC-2003 | AW-2443-1PC. | AW-2401-1PC. | |||
| REF. ACD/200/4M | REF. ACD/200/8M | AW-2444-1PC. | AW-2402-1PC. | |||
| Collet | Ceramic Cup | Gas Lens | Lens Ceramic | |||||
|---|---|---|---|---|---|---|---|---|
| Size | Part No. | Bore | Length | Part No. | Size | Part No. | Bore | Part No. |
| 1.0 MM | AW-2431 | 6.3 MM | 41 MM | 2411 | 1.5 MM | AW-2441 | 6 MM | 2461 |
| 1.5 MM | AW-2432 | 6.3 MM | 67 MM | 2412 | 2.0 MM | AW-2442 | 8 MM | 2462 |
| 2.0 MM | AW-2433 | 9.5 MM | 41 MM | 2413 | 2.5 MM | AW-2443 | 10 MM | 2463 |
| 2.5 MM | AW-2434 | 9.5 MM | 67 MM | 2414 | 3.0 MM | AW-2444 | 12 MM | 2464 |
| 3.0 MM | AW-2435 | 15 MM | 2465 | |||||
