Designed
General Argon Arc Application
Capacity
600 Amps Dc Or 450 Amps Ac.
Interchange
Model ACD/300 Except The Torch Head And Hose Assembly.
Hold
Upto 6.0 MM Dia Tungsten Rod.

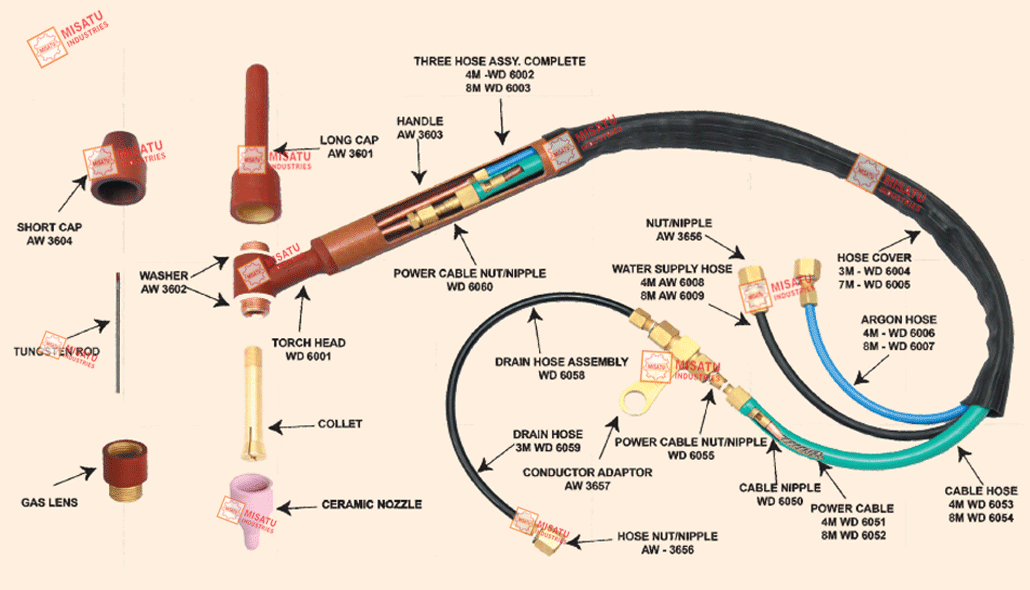

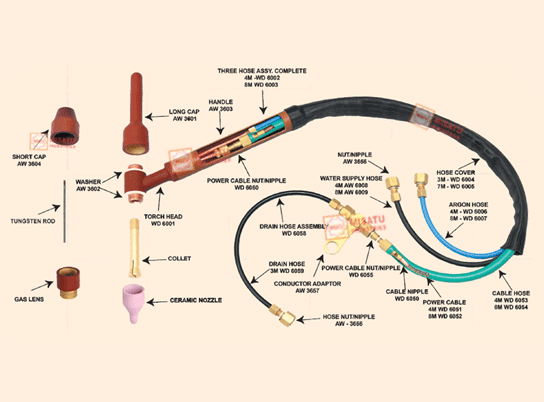

| Torch Package | Standard Accessories Kit Set Of 10 Pcs - Ref. : WCD/600/SAK | |||||
|---|---|---|---|---|---|---|
| Ceramic Cup | Lens Ceramic | Collet | ||||
| Torch Head | WD-6001 | Long Cap | AW-3601 | AW-3621-1PC. | AW-3643-1PC. | AW-3633-1PC. |
| Washer (2 Pcs.) | AW-3602 | Collet | AW-3634 | AW-3622-1PC. | AW-3644-1PC. | AW-3634-1PC. |
| Handle | AW-3603 | Ceramic | AW-3621 | AW-3623-1PC. | AW-3635-1PC. | |
| Conductor Adoptor | AW-3657 | |||||
| Water Drain Hose Assy. | WD-6058 | |||||
| Either | Plus Cable Assy. | Or | Short Caps | Long Caps | ||
| 4 METER - WCD-6002 | 8 METER - WCD-6003 | AW-3604 - 1 PC. | AW-3601- 1 PC. | |||
| REF. WCD/600/4M | REF. WCD/600/8M | |||||
| Collet | Ceramic Cup | Gas Lens | ||||||
|---|---|---|---|---|---|---|---|---|
| Size | Part No. | Size | Part No. | Bore | Length | Part No. | Size | Part No. |
| 2.5 MM | AW-3633 | 5.0 MM | AW-3636 | 6.0 MM | 50 MM | AW-3620 | 2.5 MM | AW-3642 |
| 3.0 MM | AW-3634 | 6.0 MM | AW-3637 | 9.00 MM | 50 MM | AW-3621 | 3.0 MM | AW-3643 |
| 4.0 MM | AW-3635 | 12.00 MM | 50 MM | AW-3622 | 4.0 MM | AW-3644 | ||
| 15.00 MM | 50 MM | AW-3623 | 5.0 MM | AW-3645 | ||||
| 19.00 MM | 50 MM | AW-3624 | 6.0 MM | AW-3646 | ||||
