Designed
General Argon Arc Application
Capacity
200 Amps Dc Or 150 Amps Ac.
Interchange
Model ACD/100 Except The Torch Head And Hose Assembly.
Hold
Upto 3.0 MM Dia Tungsten Rod.

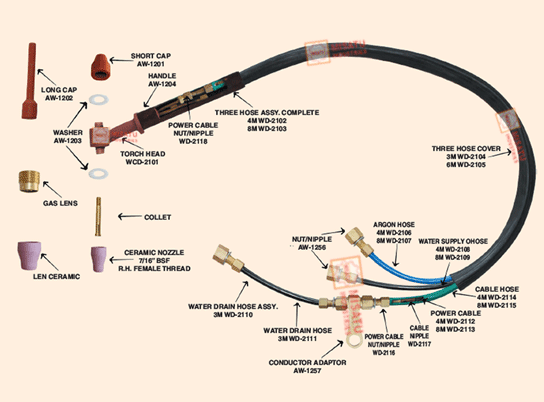

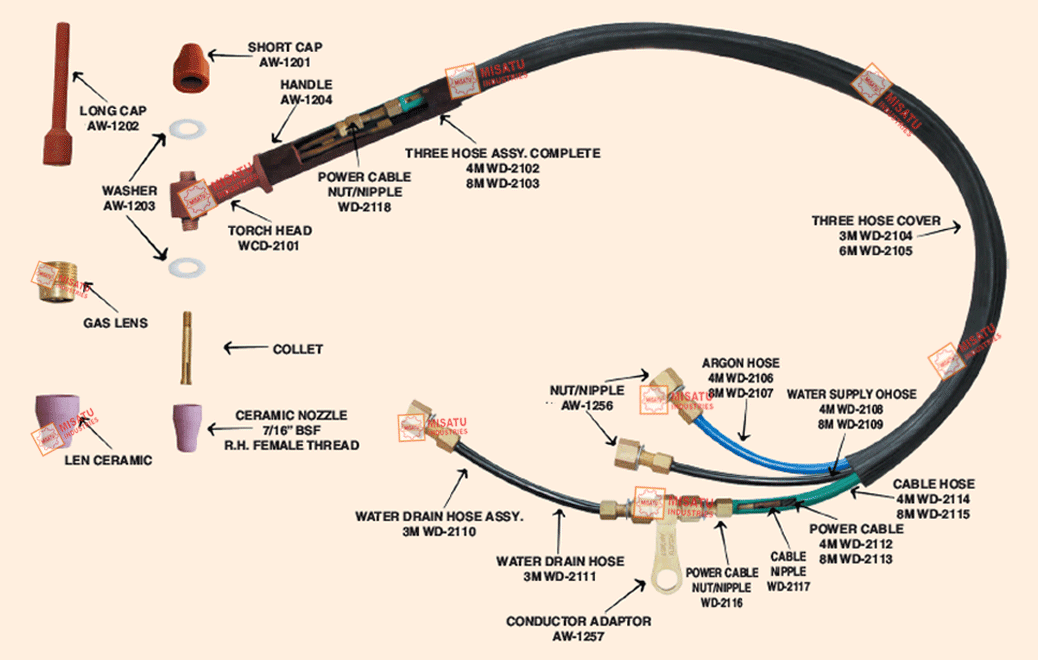

| Torch Package | Standard Accessories Kit Set Of 11 Pcs - Ref. : WCD/220/SAK | |||||
|---|---|---|---|---|---|---|
| Ceramic Cup | Lens Ceramic | Collet | ||||
| Torch Head | WD-2101 | Long Cap | AW-1202 | AW-1231-1PC. | AW-1262-1PC. | AW-8113-1PC. |
| Washer (2 Pcs.) | AW-1203 | Collet | AW-1223 | AW-1232-1PC. | AW-1264-1PC. | AW-8114-1PC. |
| Handle | AW-1204 | Ceramic | AW-1231 | AW-1233-1PC. | AW-8115-1PC. | |
| Conductor Adoptor | AW-1257 | AW-1234-1PC. | ||||
| Water Drain Hose Assy. | WD-2110 | |||||
| Either | Plus Cable Assy. | Or | Gas Lens | Cap | ||
| 4 METER - WCD-2102 | 8 METER - WCD-2103 | WG-1244 - 1 PC. | AW-1201-1PC | |||
| REF. WCD/210/4M | REF. WCD/210/8M | WG-1245 - 1 PC. | AW-1202-1PC. | |||
| Collet | Ceramic Cup | Gas Lens | Lens Ceramic | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Part No. | Size | Part No. | Bore | Length | Part No. | Size | Part No. | Bore | Part No. |
| 1.0 MM | AW-1221 | 2.5 MM | AW-1224 | 6.0 MM | 25 MM | AW-1231 | 1.0 MM | AW-1241 | 6.0 MM | AW-1261 |
| 1.5 MM | AW-1222 | 3.0 MM | AW-1225 | 8.00 MM | 18 MM | AW-1232 | 1.5 MM | AW-1242 | 8.00 MM | AW-1262 |
| 2.0 MM | AW-1223 | 9.50 MM | 25 MM | AW-1233 | 2.0 MM | AW-1243 | 10.0 MM | AW-1263 | ||
| 6.0 MM | 50 MM | AW-1234 | 2.5 MM | AW-1244 | 12.0 MM | AW-1264 | ||||
| 6.0 MM | 80 MM | AW-1235 | 3.0 MM | AW-1245 | 15.0 MM | AW-1265 | ||||
| 4.00 MM | 50 MM | AW-1236 | ||||||||
