Designed
General Argon Arc Application
Capacity
400 Amps Dc Or 300 Amps Ac.
Interchange
Model ACD/200 Except The Torch Head And Hose Assembly.
Hold
Upto 5.0 MM Dia Tungsten Rod.

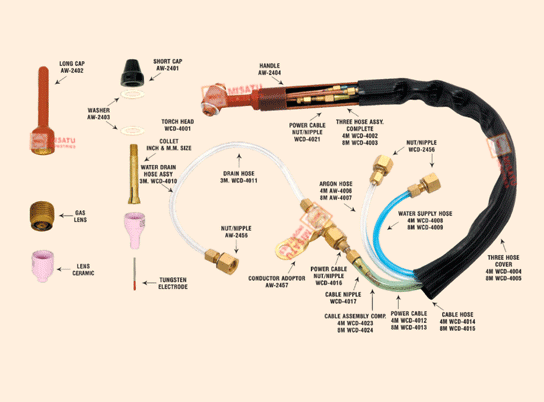

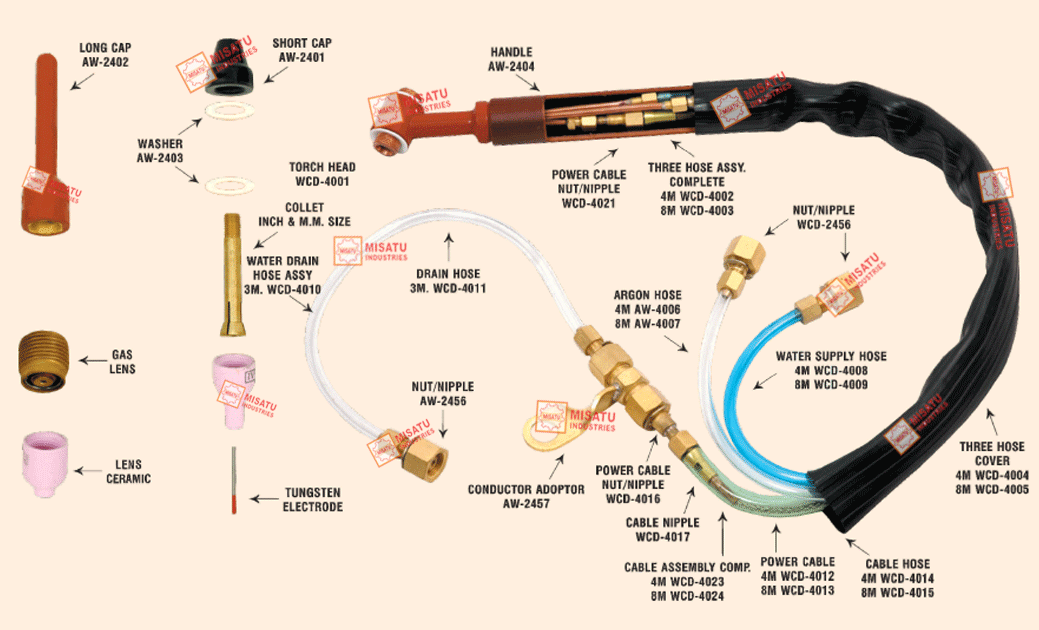

| Torch Package | Standard Accessories Kit Set Of 14 Pcs - Ref. : WCD/400/SAK | |||||
|---|---|---|---|---|---|---|
| Ceramic Cup | Lens Ceramic | Collet | ||||
| Torch Head | WD-4001 | Long Cap | AW-2402 | 2411-1PC. | 2463-1PC. | AW-2433-1PC. |
| Washer (2 Pcs.) | AW-2403 | Collet | AW-2434 | 2412-1PC. | 2464-1PC. | AW-2434-1PC. |
| Handle | AW-2404 | Ceramic | 2411 | 2413-1PC. | AW-2435-1PC. | |
| Conductor Adoptor | AW-2457 | 2414-1PC. | AW-2436-1PC. | |||
| Water Drain Hose Assy. | WD-4010 | |||||
| Either | Plus Cable Assy. | Or | Gas Lens | Caps | ||
| 4 METER - WCD-4002 | 8 METER - WCD-4003 | AW 2443-1PC. | AW 2401-1PC. | |||
| REF. WCD/400/4M | REF. WCD/400/8M | AW 2444-1PC. | AW 2402-1PC. | |||
| Collet | Ceramic Cup | Gas Lens | Lens Ceramic | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | Part No. | Size | Part No. | Bore | Length | Part No. | Size | Part No. | Bore | Part No. |
| 1.0 MM | AW-2431 | 3.0 MM | AW-2435 | 6.3 MM | 41 MM | 2411 | 1.5 MM | AW 2441 | 6 MM | 2461 |
| 1.5 MM | AW-2432 | 4.0 MM | AW-2436 | 6.3 MM | 67 MM | 2412 | 2.0 MM | AW 2442 | 8 MM | 2462 |
| 2.0 MM | AW-2433 | 5.0 MM | AW-2437 | 9.5 MM | 41 MM | 2413 | 2.5 MM | AW 2443 | 10 MM | 2463 |
| 2.5 MM | AW-2434 | 9.5 MM | 67 MM | 2414 | 3.0 MM | AW 2444 | 12 MM | 2464 | ||
| 4.0 MM | AW 2445 | 15 MM | 2465 | |||||||
