Designed
General Argon Arc Application
Capacity
300 Amps Dc Or 240 Amps Ac.
Interchange
Model WCD/600 Except The Torch Head And Hose Assembly.
Hold
Upto 6.0 Mm Dia Tungsten Rod.

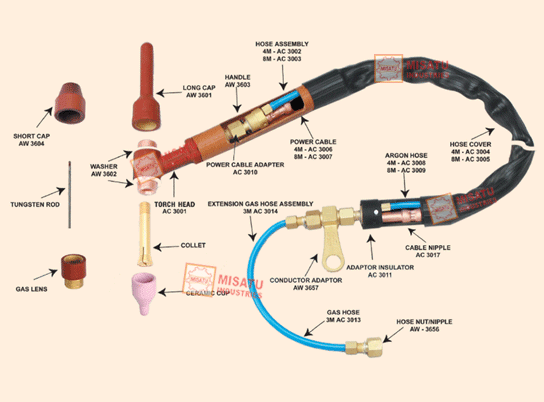

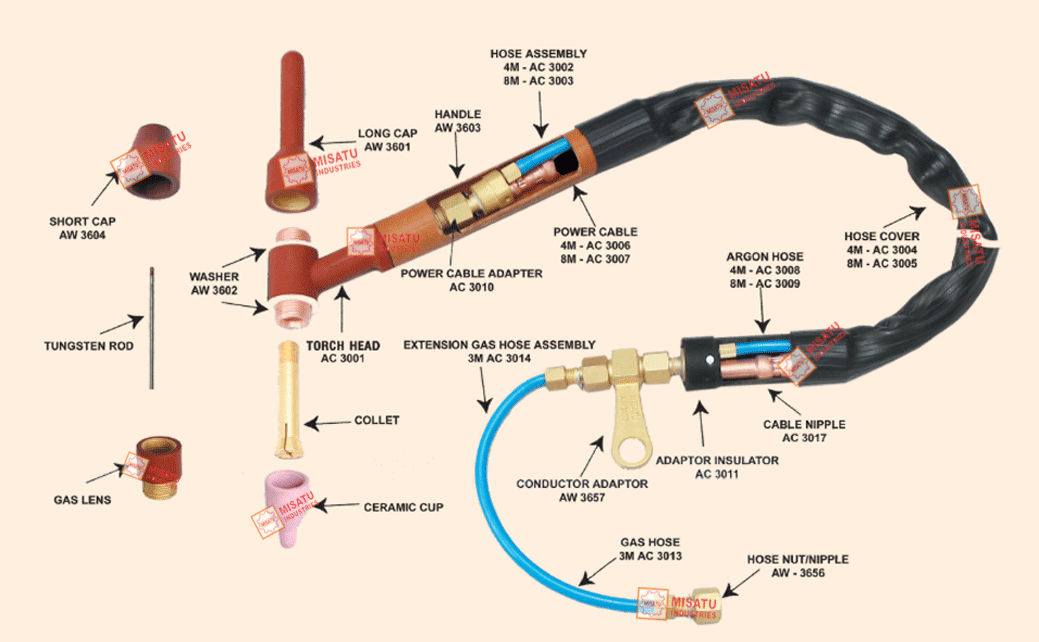

| Torch Package | Standard Accessories Kit Set Of 10 Pcs - Ref. : Acd/300/Sak | |||||
|---|---|---|---|---|---|---|
| Ceramic Cup | Lens Ceramic | Collet | ||||
| Torch Head | AC-3001 | Long Cap | AW-3601 | AW-3620-1PC. | AW-3642-1PC. | AW-3632-1PC. |
| Washer (2 Pcs.) | AW-3602 | Collet | AW-3634 | AW-3621-1PC. | AW-3643-1PC. | AW-3633-1PC. |
| Handle | AW-3603 | Ceramic | AW-3621 | AW-3622-1PC. | AW-3634-1PC. | |
| Conductor Adoptor | AW-3657 | |||||
| EXT. Argon Hose Assy. | AC-3014 | |||||
| Either | Plus Cable Assy. | Or | Short Cap | Long Cap | ||
| 4 METER - AC-3002 | 8 METER - AC-3003 | AW-3604-1PC. | AW-3601-1PC. | |||
| REF. ACD/300/4M | REF. ACD/300/8M | |||||
| Collet | Ceramic Cup | Gas Lens | ||||
|---|---|---|---|---|---|---|
| Size | Part No. | Bore | Length | Part No. | Size | Part No. |
| 2.5 MM | AW-3633 | 6.0 MM | 50 MM | AW-3620 | 2.5 MM | AW-3642 |
| 3.0 MM | AW-3634 | 9.0 MM | 50 MM | AW-3621 | 3.0 MM | AW-3643 |
| 4.0 MM | AW-3635 | 12.0 MM | 50 MM | AW-3622 | 4.0 MM | AW-3644 |
| 5.0 MM | AW-3636 | 15.0 MM | 50 MM | AW-3623 | 5.0 MM | AW-3645 |
| 6.0 MM | AW-3637 | 19.0 MM | 50 MM | AW-3624 | 6.0 MM | AW-3646 |
